Acuter Elite Phoenix 40 f/10 H-alpha Solar Telescope
Acuter Acuter Elite Phoenix 40 f/10 Solar Telescope
"... Acuter’s Elite Phoenix solar telescope has given me some of the best hydrogen-alpha views of the Sun that I have seen. The detail afforded by the narrow bandpass and great contrast across the whole of the solar disc is riveting, and even more remarkable given its economical aspirations."
Steve Ringwood review for Astronomy Now
The Acuter Elite Phoenix 40 is a safe solar telescope with a 40mm aperture front-mounted Etalon for observing active solar prominences and other solar details in the H-alpha band. It performs at 0.6 Angstrom or better.
With the etalon fitted, you can view the Sun in the narrow H-alpha bandwidth. The observer is rewarded with awe-inspiring real-time views of our nearest star, revealing details such as solar flares, prominences, spicules, surface granularity, sun spots and more!
With the etalon removed, the telescope can also be used as an 80/400 achromatic refractor telescope for regular astronomical observations.

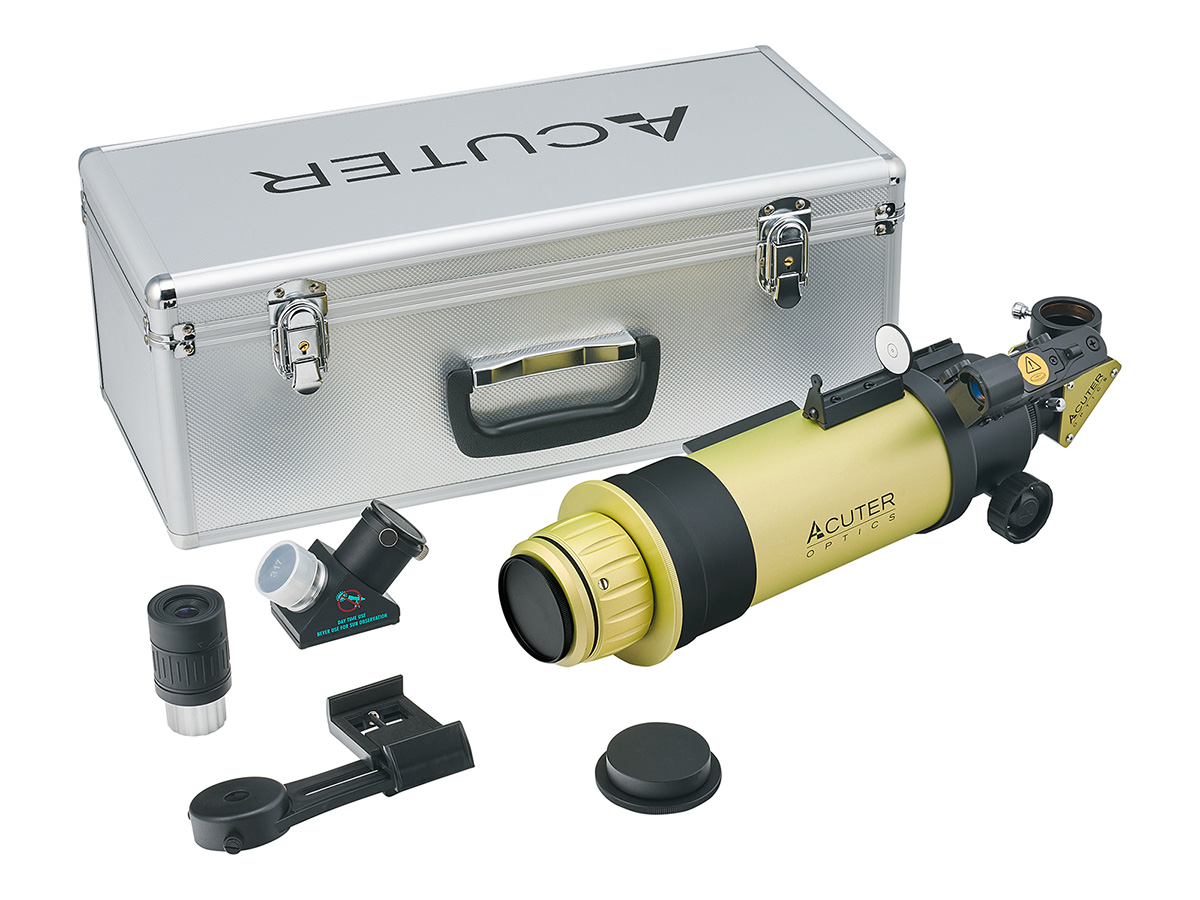

It is supplied with a Star Diagonal, a Red Dot Finder and a universal smartphone camera adaptor, so you can use your smartphone to make a photographic record of your observations.
The Acuter Elite Phoenix 40 conforms to and meets the transmission requirements of ISO 12312-2:2015 (filters for the direct observation of the Sun).
Safety Information
Please exercise extreme caution when observing the Sun. Improper usage and practices can cause serious and potentially permanent damage to your eyes. Always follow the instructions carefully. Also, the 8mm blocking filter in the removable eyepiece diagonal is a vital safety feature of the Elite Phoenix 40. Do not use this telescope with any other type of diagonal.
FEATURES
- Observe active solar prominences in the H-a band with the front-mounted solar filter performing at 0.6A or better
- Compact, portable, affordable and safe with ISO 12312 2.2015 certification

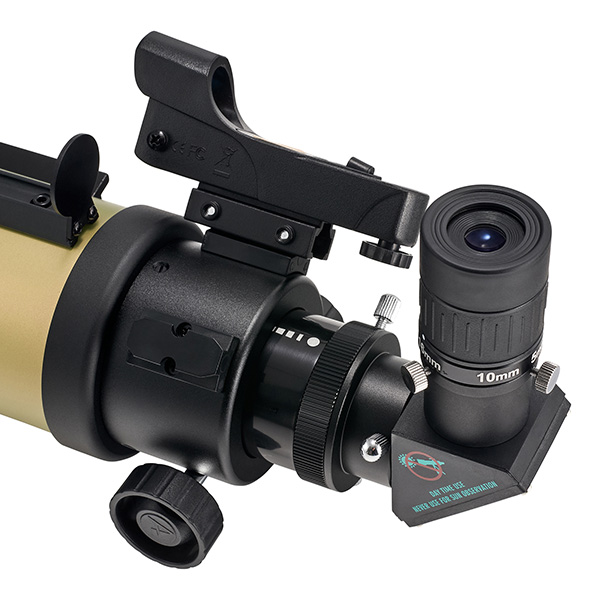

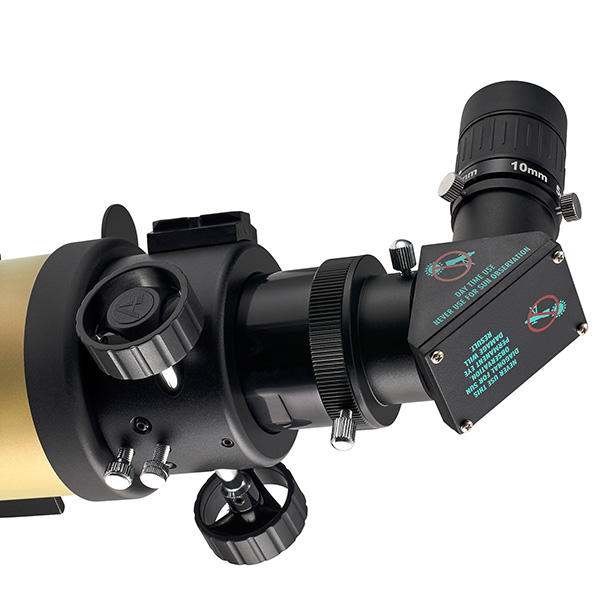

- The Crayford focuser enables fast, smooth focusing
- Supplied with a 1.25" eyepiece adapter and a 5-16mm zoom eyepiece (25x to 80x magnification)
- Also supplied with a regular Star Diagonal & Red Dot Finder - the telescope can be used for normal astronomical observations as an 80/400 achromatic refractor telescope with the etalon removed (Be very, very careful to re-attach the etalon and blocking filter before doing any solar observing).
- Includes a smartphone adapter to meet the needs of astronomical amateurs for mobile shooting
- Metal OTA body
- Includes a storage case with foam inserts
Specifications
| Model | Acuter Elite Phoenix 40 H-alpha Solar Telescope |
|---|---|
| Telescope Focal Length | 400mm (f/10) |
| Front Etalon Diameter | 40mm |
| Bandwidth | <0.6 Angstrom |
| Tuning method | Pressure tuning |
| Exit opening | 8mm |
| Block Filter | 8mm |
| Diagonal | 1.25" 90° Rotatable |
| Eyepiece Supplied | 1.25" 5-16mm Zoom |
| Magnifications (with eyepiece supplied) | 25x - 80x |
| Focuser | Crayford |
| Mounting Dovetail | 45mm, with 1/4-20 tripod threads (side-mounted) |
| Safety Compliance Certification | ISO 12312-2:2015 |
| OTA Length | 412mm |
| OTA Weight | 2kg |
